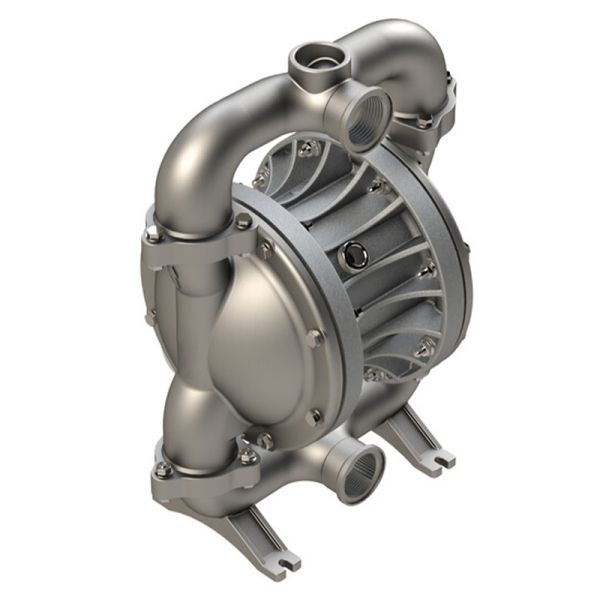

Double diaphragm pump AODD model 1 1/2” metal

Double diaphragm pump AODD model 1 1/2” metal

for plant feedings and large-scale industry

Artikel-Nr.: 5243-340
Maße (mm): A 400 | B 501 | C 263
Info: Contrary to the illustration, the outlet connection is delivered rotated by 180°.

Description: The double diaphragm pump is suitable for large scale industry and plant... mehr

Menü schließen

Produktinformationen zu "Double diaphragm pump AODD model 1 1/2” metal"

Material: Stainless steel 1.4404 (316 L)
Material of diaphragm / check balls / seals: NBR / NBR / NBR
Centre block material: Aluminium

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.

typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
also available in the Pure version (5244-410)
conductive version approved according to ATEX Directive 2014/34/EU, Category 2

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
ice-free air system
absolutely oil-free
non-stalling operation

技术数据

Doppelmembranpumpen (Werkstoff):

Metall

房屋（材料）:

Edelstahl 1.4404 (316 L)

Mittelblock (Werkstoff):

Aluminium (korrosionsschutzlackiert)

膜片（材料）:

NBR (Acrylnitril-Butadien-Kautschuk)

阀球（材料）:

NBR（丁腈橡胶）

密封件（材料）:

NBR（丁腈橡胶）

阀座（材料）:

不锈钢

流量（最高升/分钟）:

370

交付量（至mWS）:

固体（最大ømm）:

输送介质温度（最高℃）:

100

粘度（高达mPas）:

30000

Ansaughöhe trocken (bis max. mWS*):

4,5

Luftdruck (max. bar):

Luftdruck Anlauf (min. bar):

Schalldruckpegel ( in dB(A)):

Verdrängung pro Kammer ( in cm³):

670

Verdrängung pro Zyklus ( in cm³):

1340

大小:

1 1/2"

Lufteinlass (Zoll) innen:

1/2"

Druckstutzen (Zoll) innen:

1 1/2"

Saugstutzen (Zoll) innen:

1 1/2"

防爆:

防爆

Anschluss:

Gewinde

证明:	ATEX Richtlinie (ATEX Richtlinie 2014/34/EU)

类型:	DMP 1 1/2" SSB SS/NBR

*最大流量是在约20°C温度下用水在测试台上测量。测量在泵出口处进行，不带软管、喷枪或流量计。使用时可达到的扬程通常更低，这取决于具体应用、介质特性和泵的配置。扬程还取决于泵的设计、马达和介质情况。粘度值是用油测定的。

** 测试集成：介质：水/柴油，正流向，流量计前后沉降0.2m
