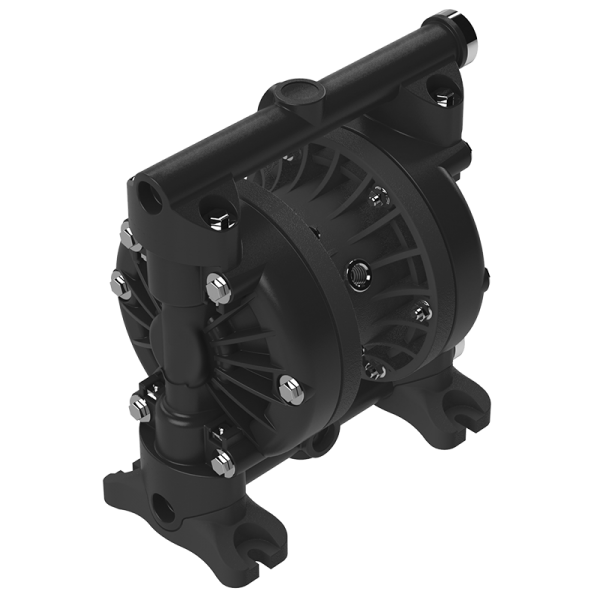

Double diaphragm pump AODD model 1/2” non-metallic

Double diaphragm pump AODD model 1/2” non-metallic

for drum, IBC and tank emptying

Artikel-Nr.: 5221-050
Maße (mm): A 243 | B 260.5 | C 160
Info: is not suitable for the Ex-area

Description: The double diaphragm pump is suitable for industrial applications as well... mehr

Menü schließen

Produktinformationen zu "Double diaphragm pump AODD model 1/2” non-metallic"

Material: Polyvinylidene fluoride carbon fibre reinforced (PVDF)
Material of diaphragm / check balls / seals: FPM / FPM / FPM
Centre block material: Polyvinylidene fluoride carbon fibre reinforced (PVDF)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBCs and tanks.

typical applications: 200 l drums, paint circulation and feeding, feeding of chemicals, solvents, acids and liquid soap
reinforced elastomers and thermoplastic diaphragms
highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
ice-free air system
absolutely oil-free
non-stalling operation

技术数据

Doppelmembranpumpen (Werkstoff):

Kunststoff

房屋（材料）:

Polivinylidenfluorid kohlefaserverstärkt (PVDF)

Mittelblock (Werkstoff):

Polypropylen kohlefaserverstärkt (PP)

膜片（材料）:

FPM（氟化橡胶）

阀球（材料）:

FPM（氟化橡胶）

密封件（材料）:
