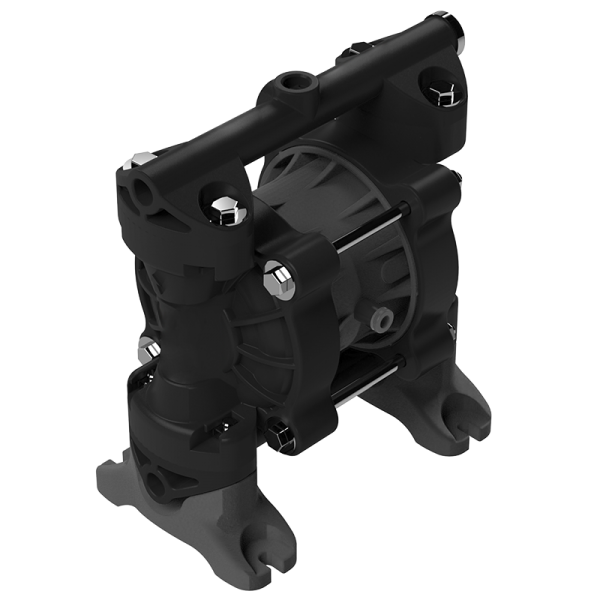

Double diaphragm pump AODD model 1/4” non-metallic

Double diaphragm pump AODD model 1/4” non-metallic

for small systems or in the laboratory sector

Artikel-Nr.: 5201-050
Maße (mm): A 183 | B 203 | C 107
Info: is not suitable for the Ex-area

Description: The double diaphragm pump is suitable for pumping small quantities in the... mehr

Menü schließen

Produktinformationen zu "Double diaphragm pump AODD model 1/4” non-metallic"

Material: Polyvinylidene fluoride carbon fibre reinforced (PVDF)
Material of diaphragm / check balls / seals: FPM / FPM / FPM
Centre block material: Polyvinylidene fluoride carbon fibre reinforced (PVDF)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for pumping small quantities in the laboratory sector and for occasional filling processes.

typical applications: Chemical circulation and feed, liquids with solid particles such as paints and lacquers, electroplating liquids, etc.
reinforced elastomers and thermoplastic diaphragms
highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
ice-free air system
absolutely oil-free
non-stalling operation

技术数据

Doppelmembranpumpen (Werkstoff):

Kunststoff

房屋（材料）:

Polivinylidenfluorid kohlefaserverstärkt (PVDF)

Mittelblock (Werkstoff):

Polypropylen kohlefaserverstärkt (PP)

膜片（材料）:

FPM（氟化橡胶）

阀球（材料）:

FPM（氟化橡胶）

密封件（材料）:

FPM（氟化橡胶）

阀座（材料）:

PVDF（聚偏二氟乙烯）

流量（最高升/分钟）:

交付量（至mWS）:

固体（最大ømm）:

输送介质温度（最高℃）:

粘度（高达mPas）:

3500

Ansaughöhe trocken (bis max. mWS*):

Luftdruck (max. bar):

Luftdruck Anlauf (min. bar):

Schalldruckpegel ( in dB(A)):

Verdrängung pro Kammer ( in cm³):

Verdrängung pro Zyklus ( in cm³):

大小:

1/4"

Lufteinlass ( Ø mm):

Druckstutzen (Zoll) innen:

1/4"

Saugstutzen (Zoll) innen:

1/4"

防爆:

Nein

Anschluss:

Gewinde

证明:

类型:	DMP 1/4" KNV PVDF/FPM

*最大流量是在约20°C温度下用水在测试台上测量。测量在泵出口处进行，不带软管、喷枪或流量计。使用时可达到的扬程通常更低，这取决于具体应用、介质特性和泵的配置。扬程还取决于泵的设计、马达和介质情况。粘度值是用油测定的。

** 测试集成：介质：水/柴油，正流向，流量计前后沉降0.2m
