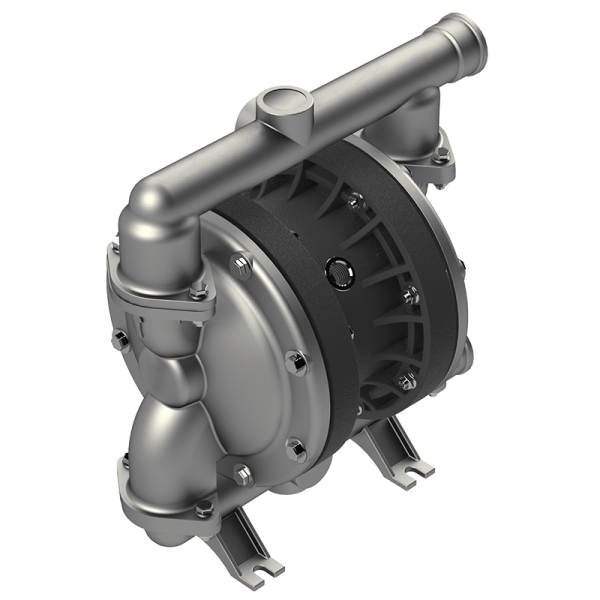

Double diaphragm pump AODD model 1” metal

Double diaphragm pump AODD model 1” metal

for drum, IBC and tank emptying

Artikel-Nr.: 5233-140
Maße (mm): A 312 | B 321.5 | C 203.5
Info: is suitable for the Ex-area

Description: The double diaphragm pump is suitable for industrial applications as well... mehr

Menü schließen

Produktinformationen zu "Double diaphragm pump AODD model 1” metal"

Material: Stainless steel 1.4404 (316 L)
Material of diaphragm / check balls / seals: NBR / NBR / NBR
Centre block material: Stainless steel 1.4404 (316 L)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBCs and tanks.

typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
also available in the Pure version (5234-410)
conductive version approved according to ATEX Directive 2014/34/EU, Category 2

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
ice-free air system
absolutely oil-free
non-stalling operation

技术数据

Doppelmembranpumpen (Werkstoff):

Metall

房屋（材料）:

Edelstahl 1.4404 (316 L)

Mittelblock (Werkstoff):

Polypropylen kohlefaserverstärkt (PP)

膜片（材料）:

NBR (Acrylnitril-Butadien-Kautschuk)

阀球（材料）:

NBR（丁腈橡胶）

密封件（材料）:
