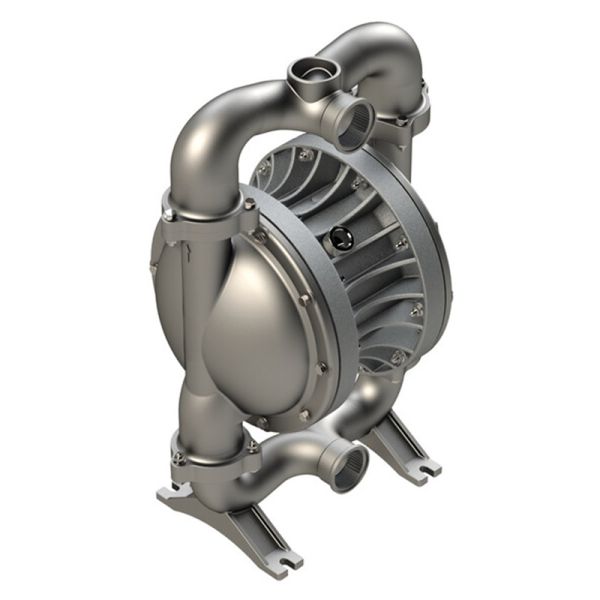

Double diaphragm pump AODD model 2” metal

Double diaphragm pump AODD model 2” metal

for plant feedings and large-scale industry

Artikel-Nr.: 5253-340
Maße (mm): A 478 | B 694 | C 346
Info: Contrary to the illustration, the outlet connection is delivered rotated by 180°.

Description: The double diaphragm pump is suitable for large scale industry and plant... mehr

Menü schließen

Produktinformationen zu "Double diaphragm pump AODD model 2” metal"

Material: Stainless steel 1.4404 (316 L)
Material of diaphragm / check balls / seals: NBR / NBR / NBR
Centre block material: Aluminium

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound

Description:

The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.

typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
also available in the Pure version (5254-410)
conductive version approved according to ATEX Directive 2014/34/EU, Category 2

Features & Benefits

high hydraulic performance
maintenance-optimised design and simple installation
self-priming (even when dry)
ice-free air system
absolutely oil-free
non-stalling operation

技术数据

Doppelmembranpumpen (Werkstoff):

Metall

房屋（材料）:

Edelstahl 1.4404 (316 L)

Mittelblock (Werkstoff):

Aluminium (korrosionsschutzlackiert)

膜片（材料）:

NBR (Acrylnitril-Butadien-Kautschuk)

阀球（材料）:

NBR（丁腈橡胶）

密封件（材料）:
